HRS-150 Digital Rockwell Hardness Tester
Product description:
Rockwell Hardness Tester
.jpg)
Share With:
Application and scope：
Determine the Rockwell hardness of ferrous metals, non-ferrous metals and non-metallic materials;
Wide application range, suitable for Rockwell hardness measurement of heat-treated materials such as quenching and quenching and tempering.

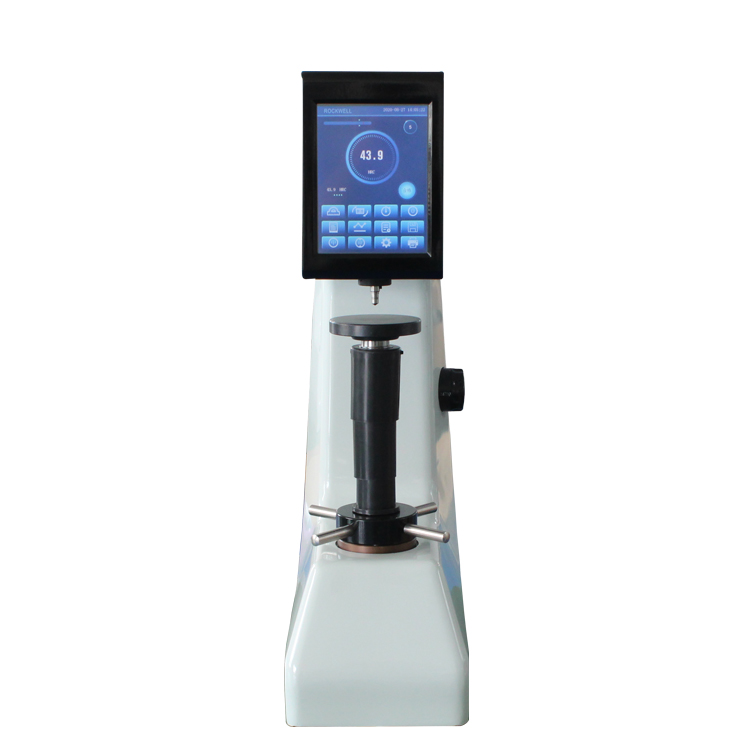

HRS-150 color touch screen digital display Rockwell hardness tester is a high-tech product with novel appearance and stable performance. Visual digital display and computer control, stable performance, is a set of mechanical and electrical integration of high-tech products, can carry out Rockwell scale hardness test. Touch screen interface, easy to operate.
Specifications:
Packing list:Specifications:
| Test force | 60kgf(588.4N) 100kgf(980.7N) 150kgf(1471N) |
| initial test force | 10KGF(98N) |
| Distance from center of indenter to wall | 165mm |
| Max. height of specimen | 170mm |
| scale conversion | HV,HB,HR |
| hardness resolution | 0.1 rockwell unit |
| Test range |
HRA:20-88,HRB:20-100,HRC:20-70,HRD:40-77,HRE:70-100 HRF:60-100,HRG:30-94,HRH:80-100,HRK:40-100,HRL:50-115 HRM:50-115,HRR:50-115,HRP:50-115,HRS:50-115,HRV:50-115 |
| Rockwell scale |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV |
| loading and unloading mode | Automatic loading and unloading |
| Weight | 85KG |
| Dimension | 550*220*730mm |
| Date output | Built-in printer, RS232 communication interface |
| hardness reading mode | LCD Display Hardness Value, Rockwell Scale, Total Test Force, Duration Time |
| 1 | Rockwell hardness tester | 1 | |
| 2 | Printer | 1 | |
| 3 | Big flat workbench | 1 | |
| 4 | Small flat workbench | 1 | |
| 5 | V workbench | 1 | |
| 6 | Diamond Cone Rockwell indenter | 120° | 1 |
| 7 | Φ1.588mm ball indenter | 1 | |
| 8 | |||
| 9 | Standard Rockwell hardness block | 20~30HRC 35~55HRC 60~70HRC 80~88HRA 85~95HRB |
1 each |
| 10 | Power cord | 1 | |
| 11 | Fuse | 2A | 1 |
| 12 | Farmar A,B,C | 1 each | |
| 13 | Dust cover | 1 | |
| 14 | Accessory Case | 1 | |
| 15 | User manual | 1 | |
| 16 | Certificate | 1 | |
| 17 | Packing list | 1 |
