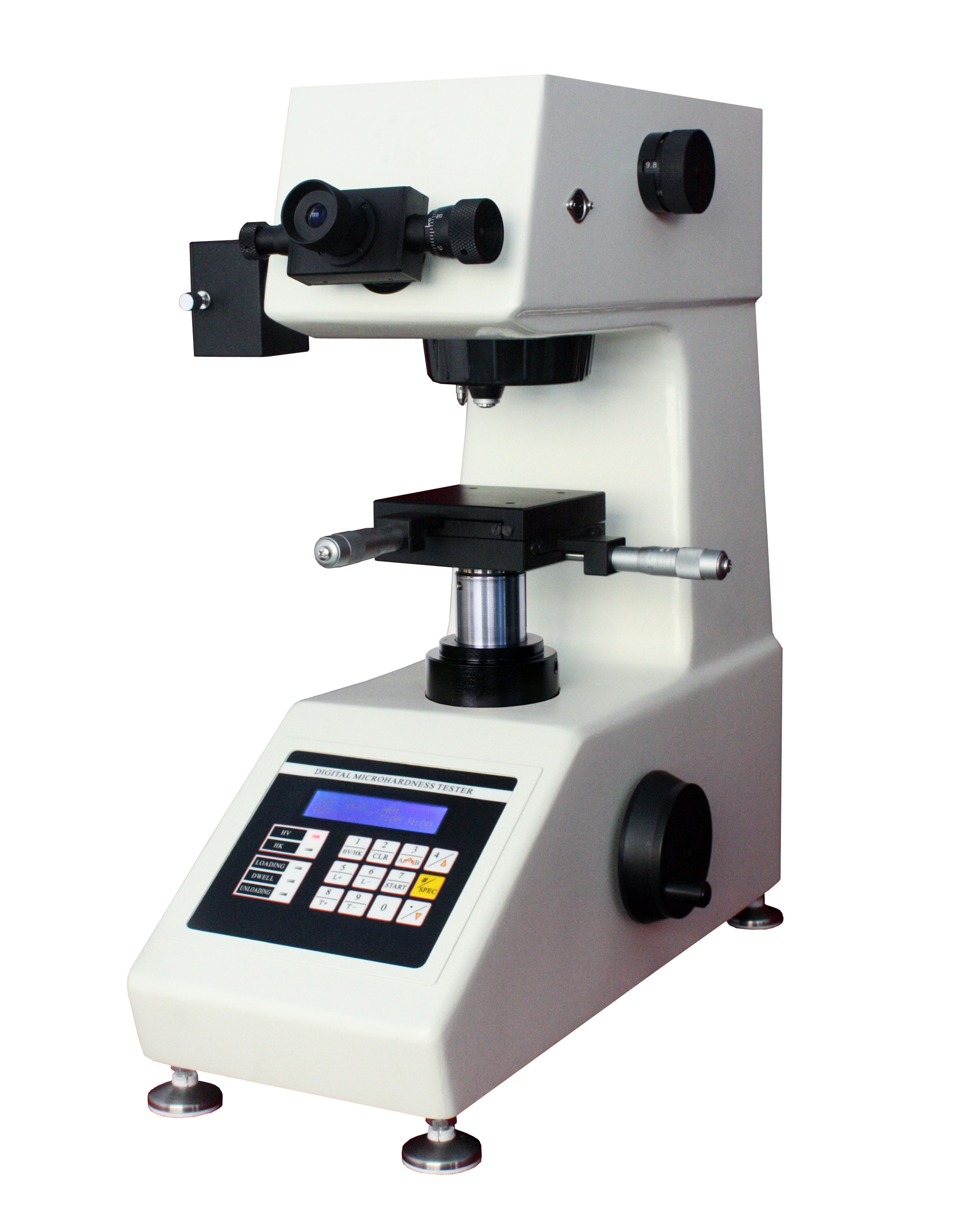

1.  The Micro Vickers Hardness Tester is a new type high-tech product combining the optical, mechanic and electronic techniques with a novel and pleasing appearance, favorable operational functions and reliability, and hence it is an ideal instrument for the testing of micro-hardness.
2.  The instrument is made with a precise design in the field of mechanics, CPU control of the testing in the electric field, and adopted the highly clear optic measuring system in the field of optics as well. Besides, inputting by means of the touch keys on the operating board, the instrument has multiple functions such as the selection of the Vickers or the Knoop measuring methods, the presetting of the dwell time for test force, regulation of the intensity for measuring light source and the indicating testing numbers, etc. After readout the diagonal line length of indentation and key in it through soft keys, the hardness value will be shown on the screen.
3. According to the particular requirements of the client, the instrument can be equipped with CCD device. The instrument is suitable for testing the micro and thin pieces, the parts with the permeated and coated surface, it is also fit for testing Vickers and Knoop hardness value for the crisp materials such as the agate, glass, ceramics and it is, therefore, an ideal hardness measuring instrument for the scientific research institutes, the universities and colleges, the industrial production units and the metrological institutes using with for studying and measuring.


Technical specifications
1. Testing range:   1HV~2967HV
2. Test force： 0.098N（10gf），0.245N（25gf），0.49N（50gf），0.9807N（100gf），
1.961N（200gf），2.942N（300gf），4.903N（500gf），9.807N（1000gf）
3. Displayed Hardness Value     Hardness Range                Max Tolerance
                          （200～300）HV0.05                    ±5.0%
                           (400～500)HV0.1、（700～800）HV0.2      ±4.0%
                           (700～800)HV0.5、HV1                  ±3.0％
4. Max height of the specimen:                    100 mm
5. Distance between the center point of the indenter and the exterior panel:  98mm
6. Test force application method:    automatic loading and unloading
7. Amplification of the microscope:     400× (for the measurement),
100× (for the observation)
8. Dwell time of the test force:              0~60s (5 seconds as a unit)
9.Min graduation value of the testing drum wheel:   0.25μm/grid
10. Weight of the main body:                      30kg
11. Power source:                           AC220V/50~60Hz
12. Dimension (L×W×H):                    (480×305×545) mm

Accessories (The Packing List)
1. The main instrument (including a micro vickers indenter, a 40×objective and a 10×objective )
2. The Accessories Kit

Item	Descriptions	Quantity
1	Weights	6 PCS
2	Weight Axis	1 PC
3	Cross Testing Table	1 PC
4	Platelet Fixture	1 PC
5	Plane-holding Fixture	1 PC
6	Filament Fixture	1 PC
7	Screw Drivers	2 PCS
8	Horizontal Regulating Screws	4 PCS
9	Level	1 PC
10	Power Cord	1 PC
11	Repair Fuses (1A)	2 PCS
12	10×Digital Micro Eyepiece	1 PC
13	Vickers Hardness Blocks	2 PCS (one middle-sized HV0.2 block and one high-sized HV1 block)
14	The USAGE Instruction Manual	1 PC

3. Special Accessories

Item	Descriptions
1	Knoop Indenter
2	Hardness Test Blocks
3	Metallurgical Specimen Mounting Press
4	Metallurgical Specimen Polisher
5	Metallurgical Specimen Cutter
6	CCD Image Measuring System
