Impact Devices
Product description:
Specifications: Impact Device D DC DL C D+15 E G Code# 852-410 852-420 852-430 852-440 852-450 852-460 852-470 Impacting Energy 11mJ 11mJ 11mJ 2.7mJ 11mJ 11mJ 90mJ Weight of Impact Body 5.5g 5.5g 7.2g 7.8g 3.0g 5.5g 20g Test tip Hardness 16
Share With:
Specifications:

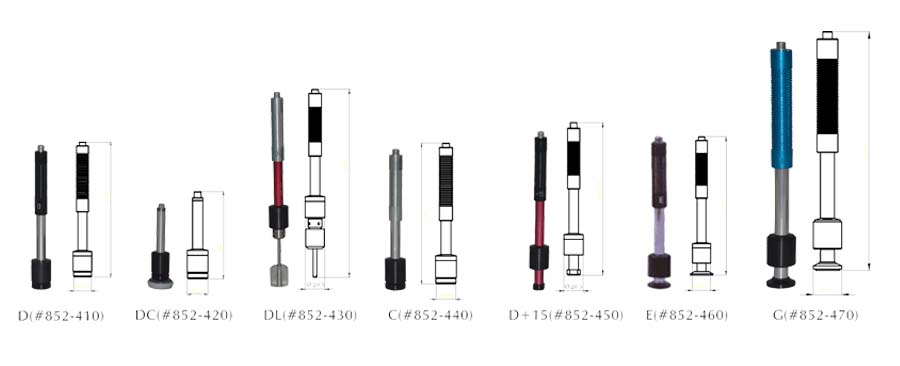

| Impact Device | D | DC | DL | C | D+15 | E | G | |
| Code# | 852-410 | 852-420 | 852-430 | 852-440 | 852-450 | 852-460 | 852-470 | |
| Impacting Energy | 11mJ | 11mJ | 11mJ | 2.7mJ | 11mJ | 11mJ | 90mJ | |
| Weight of Impact Body | 5.5g | 5.5g | 7.2g | 7.8g | 3.0g | 5.5g | 20g | |
| Test tip Hardness | 1600HV | 1600HV | 1600HV | 1600HV | 1600HV | 1600HV | 1600HV | |
| Dia. Test tip | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | |
| Material of Test Tip | Tungsten carbide | Diamond | Tungsten carbide | |||||
| Impact Body | ||||||||
| Diameter | 20mm | 20mm | 20mm | 20mm | 20mm | 20mm | 30mm | |
| Length | 147mm | 86mm | 75mm | 141mm | 162mm | 155mm | 254mm | |
| Weight | 50g | 50g | 50g | 75g | 80g | 80g | 250g | |
| Max. hardness of Sample | 940HV | 940HV | 940HV | 1000HV | 940HV | 1200HV | 650HB | |
| Average Roughness Ra | 1.6μm | 1.6μm | 1.6μm | 0.4μm | 1.6μm | 1.6μm | 6.3μm | |
| Min. weight of Sample | ||||||||
| Measurement Directly | >5kg | >5kg | >5kg | >1.5kg | >5kg | >5kg | >15kg | |
| Need Support Firmly | 2～5kg | 2～5kg | 0.5～1.5kg | 2～5kg | 2～5kg | 2～5kg | 5～15kg | |
| Need Coupling Tightly | 0.05～2kg | 0.05～2kg | 0.02～0.5kg | 0.05～2kg | 0.05～2kg | 0.05～2kg | 0.5～5kg | |
| Min. thickness of Sample | ||||||||
| Coupling Tightly | 5mm | 5mm | 5mm | 1mm | 5mm | 5mm | 10mm | |
| Hardening Layers | ≥0.8mm | ≥0.8mm | ≥0.8mm | ≥0.2mm | ≥0.8mm | ≥0.8mm | ≥1.2mm | |
| Indentation of Test tip | ||||||||
|
Hardness 300HV |
Diameter | 0.54mm | 0.54mm | 0.54mm | 0.38mm | 0.54mm | 0.54mm | 1.03mm |
| Depth | 24μm | 24μm | 24μm | 12μm | 24μm | 24μm | 53μm | |
|
Hardness 600HV |
Diameter | 0.45mm | 0.45mm | 0.45mm | 0.32mm | 0.45mm | 0.45mm | 0.90mm |
| Depth | 17μm | 17μm | 17μm | 8μm | 17μm | 17μm | 41μm | |
|
Hardness 800HV |
Diameter | 0.35mm | 0.35mm | 0.35mm | 0.30mm | 0.35mm | 0.35mm | |
| Depth | 10μm | 10μm | 10μm | 7μm | 10μm | 10μm | ||
| Error and Repeatability of Displayed Value | ||||||||
| Hardness Value |
760±30HLD 530±40HLD |
760±30HLDC 530±40HLDC |
878±30HLDL 736±40HLDL |
822±30HLC 590±40HLC |
766±30HLD+15 544±40HLD+15 |
725±30HLE 508±40HLE |
590±40HLG 500±40HLG |
|
| Error of Value | ±6 /±10 HLD | ±6 /±10 HLDC | ±12 HLDL | ±12HLC | ±12 HLD+15 | ±12HLE | ±12 HLG | |
| Repeatability | 6 /10 HLD | 6 /10 HLDC | 12 HLDL | 12HLC | 12 HLD+15 | 12HLE |
12 HLG |
|
