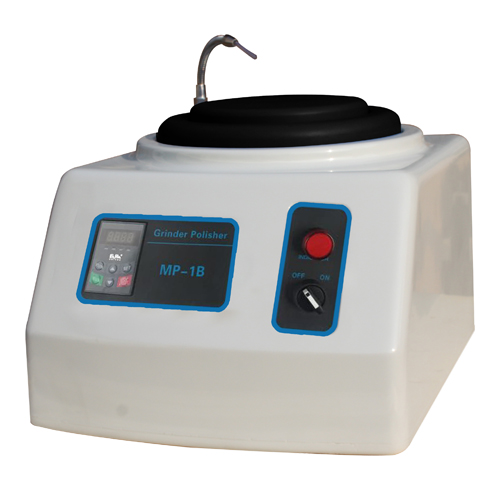

MP-1B Metallographic Specimen Grinding & Polishing Machi
1.Application and Feature:
MP-1B Metallographic Specimen Grinding & Polishing Machine is equipped with single disc and features stepless speed changing grinding and polishing.
The rotating speed of grinding and polishing disc is adjustable from 50 to 1000 rpm.
It can realize the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. This machine features easy operation and economical applying.
It is the ideal specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

2.Main Specifications:

Model MP-1B
Grinding/Polishing Disc Diameter 200mm
Grinding Disc Rotating Speed 50-1000 rpm (stepless speed)
Motor YSS6324  250 W
Dimension 400×730×310 mm
Weight 20 Kg
Operating Voltage AC 220V,50Hz
