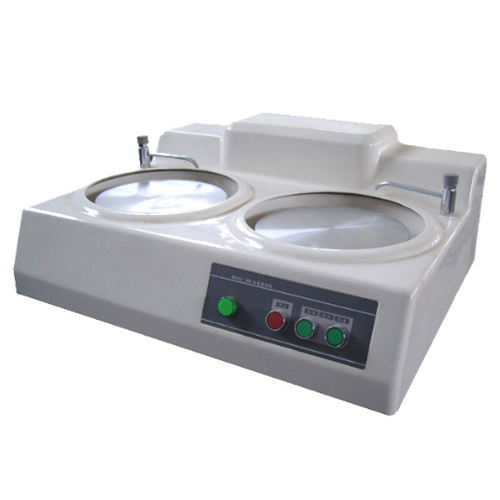

MoPao1000 Automatic Metallographic Specimen Grinding Polishing Machine
Product description:MoPao1000 Automatic Metallographic Specimen Grinding Polishing Machine is made according to international standard and internationally advanced technology.
MoPao1000 Automatic Metallographic Specimen Grinding Polishing Machine is made according
to international standard and internationally advanced technology.
Featured by high accuracy, stable reliable performance, easy operation, wide processing range,
automatic operation, etc., the machine is an ideal metallographic processing instrument.
|Speed Of Grinding-Polishing Disc||
50~600r/min (stepless speed change)
And 150r/min, 300r/min (two-step constant speed)
|Loading Range||1~200 N|
|Sampling Time||0~9990 S|
|Max. Diameter Of Sample||30mm|
|Diameter Of Grinding-Polishing Disc||250mm|
|Net Weight||65.00 KG|
3.1.Digital display of sampling speed.
3.2.Load pressure and sampling time are adjustable (the polishing time is pre-settable).
3.3.Grinding-polishing disc has two functions of two-step constant speed and stepless speed change.
3.4.The spindle of grinding-polishing head is stepless speed change.
3.5.Handsome durable ABS casing and stainless steel standard parts.
3.6.Central force loading.
3.7.Automatic distribution system of large-volume grinding materials (the polishing suspension
can be added via an automatic material dropper automatically).
3.8.Process six samples simultaneously.
3.9.The machine has function of “One Key Recovery”.
